It sometimes can be hard to find 6pin CDI for Baotian 4-stroke Scooters. 5pin variants are common though so I made a conversion cable.
 |
| Making a adapter cable from 6pin Baotian to 5 pin GY6 C.D.I. |
Here's a video showing how to convert.
https://www.youtube.com/watch?v=n5ZhNnL2H5U
|

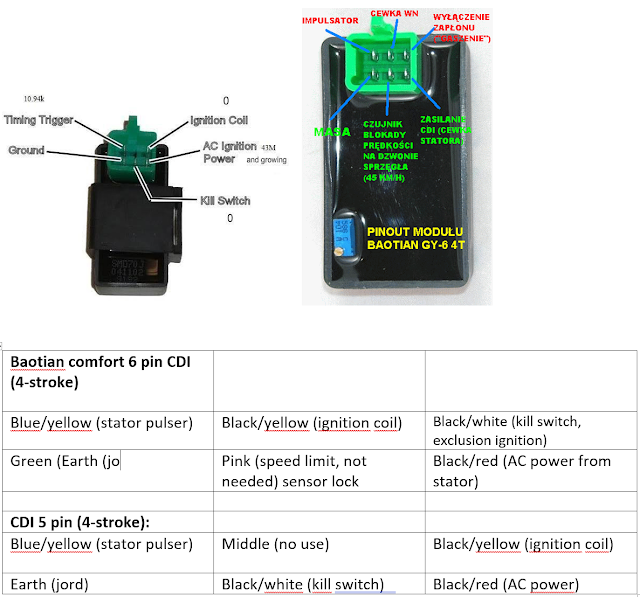

Baotian comfort 6 pin CDI (4-stroke) |
|
|
|
Blue/yellow
(stator pulser) |
Black/yellow
(ignition coil) |
Black/white
(kill switch, exclusion ignition) |
|
Green
(Earth (jo |
Pink (speed limit, not needed) sensor
lock |
Black/red (AC power from stator) |
|
|
|
|
|
CDI
5 pin (4-stroke): |
|
|
|
Blue/yellow
(stator pulser) |
Middle (no use) |
Black/yellow
(ignition coil) |
|
Earth
(jord) |
Black/white
(kill switch) |
Black/red
(AC power) |
------------------ Good to know, according to Aidix (2010) -------------
If you block has an engine block code 139QMA or 139QMB.
"Not every scooter with such a block has the same CDI. That depends on the manufacturer, there are 4 or 5 different types of CDI's for Chinese scooters, which are not interchangeable and look the same. The Spnk/rick18 indicated is therefore the wrong one, and the text that says "fits all scooters with gy6 block" is of course wrong.
Just as wrong as saying that the same cdi fits on all european 2t scooters.
Rex is a sticker brand, the real brand is Qingqi. (Same factory as Peugeot)" - Aidix, https://scooterforum.net/threads/sport-cdi.191414/#post-3238140
