Protect cable on your Rad Rover
Skid plate
1/8 birch plywood
Flaskplast som du kan tillverka skidplate av
135mm fork mount
Saturday, 7 November 2020
Monday, 2 November 2020
Replacing front Chainring with a 56 tooth sprocket on Radrunner
Replace front chainring to a bigger on Radrunner
Litepro Road Folding Bike 130BCD 45-58T Chainring Bicycle Chainwheel Bolts CNC
"But the key is to pick an afternarket chainring with 130mm BCD (bolt circle diameter), designed for 3/32" chain. You'll likely also need a new set of "standard length" bolts. since the stock ones on the Runner are longer to accommodate the inner and outer guard rings.
" - K. Hunter
 |
| Photo from K. Hunter |
"Bought an extra set of standard bolts, and kept the Rad bolts together with the rest of the stock components."
"It made a small, but noticeable difference. You'll need a shorter (standard length) bolt set. I added an extra inch of chain, but it wasn't absolutely required. Now that my top speed is "unlocked"....I might go with a 58T." - K. Hunter
 |
| Order some short extra bolts, 8mm or so. Photo K. Hunter |
"Underside of bolt head to end of threads is about 8mm, but a bolt 10mm long should also work, provided the mating "nut" is short enough to not bottom out."
K. Hunter
If you need to replace the chain, this might be a good option:
KMC X8 Chain - 7/8-speed - silver
Dimensions: 1/2" x 3/32" | bolt length 7,30 mm
Material: steel, nickel-plated
Friday, 2 October 2020
Inner tube replacement on Fat Tyre Electric Bike
A nice video showing how to replace the inner tube on a 26 inch fatbike ebike.
Inner tube replacement on VoltBike Yukon 750
Wednesday, 30 September 2020
Ebike / Elcykel Biltema Yosemite 20" Fat Tire
Made a short video showing some features of the Biltema Yosemite Ebike here in Sweden.
The frame is made in Taiwan, it has 7 speed and a Bafang rear geared hub motor.
New motorcycle tires on Ebike / Rawbike fatbike, Michelin A39 or Michelin City Grip 2
Replace 20x4.0 Kenda tire to motorcycle Michelin A39 tire
Yes, they are more weight, yes they resit puncture on another level.
Moped tire sizes are measured at the inside-diameter of the tire (just like motorcycles), but bicycle tires are measured by the average outside-diameters. A 16" motorbike tyre fits on to a 20" (407mm) bicycle rim.
406mm is the ISO standard and is what you'll likely come across.
If you want a thinner tire, check this out:
shinko SR714 16 x 2.25 moped tire, price $32.99
SR714 slicky tire for 16" wheels
speed rated 93 mph
3lb 9oz
16 x 2.25
"super easy to put on if you get the tire warmed up (leave it in a car, put it in the sun"
--------------------- --------------
Radrunner motorcycle tire with good result
"currently using shinko 241s 3:00x16, they handle great and not as heavy as regular motorcycle tires so you dont lose much range nor speed" - Jeffrey G.
You can also fit 20x4.0 on Radrunner:
 |
| Photo and cred to Chris C. |
----------------------- ---------------
"Bra pris för två nya michelindäck, montering efter alla konstens regler, rengöring av fälgar, byte av bromsbelägg (jag hade med egna nya), 1500 kr för allt. Kvitto med moms.
2 kilo tryck i framdäcket och 2.5 kilo där bak, rullar bra, och tyst." L. Berghe
"I have only driven it 5-6 kilometers since the new tires so I thought I would wait with a deeper analysis. It is quite clear, however, that the Rawbike will be more stable while traveling, no wobble anymore. Before, I experienced that the front tire sometimes tracked and climbed away on bumps, this tire is completely round, and feels "rounder", more stable.
My hope is that these tires will withstand wear much better than the leaf-thin Kenda tires. It rolls better too, even though I had my Kendas pumped hard." - L. Berghe
Where? Nacka: http://www.wheeler-dealer.se/
 |
| Moped/Motorcycle tire: Michelin 100 / 80 -16 "A39" |
Michelin A39
100/80 – 16
"Michelin sets the standard for small- to medium-displacement motorcycle tyres. Effective on all the types of roads, the A39 and M39 combine comfort and easy handling. Their durable rubber compound makes them some of the most economical tyres you’ll find."
----------------- -----------
Another guy put these on:
A year-round mop tire: Michelin City Grip 2
100 / 80-16
"Gets a little duller than the original (I drove at about 1.5kg) but you get a better driving feeling." - R. El-Ghezzaoui
----------------------------- --------------
- No I don't get anything for writing this stuff....
Tuesday, 29 September 2020
Elcykel: Tillbehör Rawbike och ex. Biltema Yosemite 20 tums fatbike
Montera Cargo Mini på RAWBIKE
Atran velo cargo mini pakethållare
Fram pakethållare går att köpa här:
https://www.rawbike.se/produkt/cargo-mini/
 |
| Photo A. Falck |
Monday, 28 September 2020
Rad Power Bikes RadCity
RadCity
Direct drive hub motor (gearless from Shinji), more reliable.
Regenerative braking
750 watt
50 km range, samsung 18650
toppfart 20 mph or 32
kan öka farten med 25 procent.
Suntour springfork 100mm
1499 dollar
Derestrict it
Sunday, 27 September 2020
Trailer hitch on a Radrunner
Trailer to your Radrunner?
"If anyone is looking to fit a trailer hitch, this is what I did. Used stepper drill bit to make my hitch plate a bit larger and used Dremel to make a notch for the hex head bolt to fit. Then placed the plate behind the axle nut, replacing the washer with my plate. Also, I found a larger hex head bolt to replace the crappy one that came with the bike since it just stripped as soon as a tried to remove it, so now it’s the same size hex head as the other side." - M. V. Sant
 |
| Using the flat coupler |
------------------ -------------------
"Pardon the crudeness of this example , hopefully it will help illustrate my idea a little better.
Once the three hole bracket is fabed I would weld the replacement part to outer surface ." - James Mj Buche
--------------- -------------
"I don't like the idea of a side hitch so I built this. I also found Rustolium paint to match the green"
- Gary Edwards
Ventura Zinc Coated Bicycle Trailer Hitch
" The trailer is an Action Packer container by Rubber Maid bolted to a flat traile" - G Edwards
Sunday, 13 September 2020
Radrunner and RadRover e-bikes
Skärmdump från: https://radpowerbikes.eu/products/radrunner-plus-electric-utility-bike?fbclid=IwAR3mCJcqLad28O0K_RhuC0sJ9-Z0SLFBzdvoixWEVCoYC7qucSsZGMRCbno
Fast hur ändrar man Radrunner som inte har display?
Photo: L. M. Olson
Sidoväskor på din Radrunner
"motorcycle trunk found on Amazon.com you bolt the mounting platform to the bike then the locks to it , it's removeable with a push of the button." - G. Edwards
 |
| Motorcycle trunk. Photo by G. Edwards |
Sunlite Cloud-9 Saddle also known as C9 is a well known replacement of the saddle.
 |
| Photo by B-M Cotter |
I den här videon är medgrundaren med och berättar lite om Radrunner.
Tror man beställer här: https://radpowerbikes.eu/
Ändra från 250W till 750W på EU version
J. Zetterman:
"Ja min är en 250 W EU modell, det står 250W på cykeln. Även i displayen så står det "250 W" när man har på assistans läge 5 trots att det då går mellan 30-34 KM/H efter att ställt om den. Fast det blir såklart olaglig efter inställningen eftersom den ger assistans upp till den farten."
Radrunner, coola cyklar med nästan moppedäck.
RadRover E Bike Review
Radrunner är med i denna video
Bolton upgrade, controller 35A and display
https://boltonebikes.com/products/2019-radpower-upgrade-kit-with-tail-light?fbclid=IwAR0Eiklh5dRAZ8q721iFrojpK6v93fPq1tYzIJEaMXE06N8ZoZenLheFnck
https://cdn.shopify.com/s/files/1/0912/7284/files/KT-LCD8H-user-manual.pdf?v=1589832746
Friday, 19 June 2020
Bafang G310
Bafang G310 Problem
2:02:25
"We found that the G310 motors, as much as we love them have been one of our highest percentage motor failures of our base that we had to deal with. We've had issues with the magnets coming lose. [inaudible], we've had issues with gears failures. That's obvious by suppling them with more power than they can take. Rolling back the phase limits in the motor controller in any of those systems."
Justin, https://www.youtube.com/watch?v=c96n0Ma2rLY
Monday, 15 June 2020
Surly as frame for DIY project
"Tongsheng TSDZ2 will fit any standard threaded bottom bracket which is 68mm-73mm wide, with an inside diameter of approximately 33.5mm." - https://ebikechoices.com/tongsheng-tsdz2-review/
https://surlybikes.com/bikes/bridge_club
Bridge Club
Bottom Bracket: 73mm threaded (1.37" x 24TPI)
Two build kit options: Pavement (700c) and Off-Road (27.5)
Run racks and panniers, framebags, or all of the above
Disc brake-specific, single position vertical rear dropout makes it less intimidating than other bikes in the category
Clearance for 700 x 47mm tires (with or without fenders), 27.5 x 2.8” tires (27.5 x 2.6” with fenders), and 26 x 3” tires (26 x 2.8” with fenders)
 | ||
| "Bridge Club. Decided to go with the Fatty 27.5 wheels. Love it but I’m a Surly Fanboy.."- | Tobi We |
Regenerative charging
Regenerative braking
Found this on the net:
"Been doing some research on the controller and you can unlock some features like cruse and 3 speed switch if you connect the right pads.
A2 goes to 5v when ebrake engaged
K1 3speed switch (green)
K2 3speed switch (blue )
Q cruise
X + DS Regen braking
6/12 motor learning
ZL PAS sensor~
XS throttle restrictor
SL Ebrake active low
SH Ebrake active high"
How to rework rear sprockets for mid drive systems
Gear clamps to move the bigger rear sprocket for straighter chainline
https://electricbike.com/forum/forum/knowledge-base/motors-and-kits/bbshd/39170-how-to-rework-rear-sprockets-for-mid-drive-systems
Check out this nice video: How to rework rear sprockets for mid drive systems...
Nice tire: Surly Extra Terrestrial 26x2.5
Gearclamp used in this video http://www.gearclamp.com/
The cassette is a SunRace CSM98 bought on ebay
Saturday, 23 May 2020
Tongsheng TSDZ2
TSDZ2 Info
"No, the controller is just the same and the controller can work for a 24V battery pack up to 52V battery pack. The firmware is also the same and the only thing that changes is the EEPROM values that keeps the settings for that low voltage and max voltage." - Casainho
http://52.25.253.50/forums/viewtopic.php?f=28&t=79788&sid=308154c44e5667e835f414408b1a0ef3&start=2375
https://github.com/OpenSource-EBike-firmware/TSDZ2_wiki/
Om du köper Tongsheng TSDZ2
NOTE: KT-LCD3 display is not recommended anymore because we hit the memory limit of it and so we stopped the development to it.
Välj helst följande display
850C......eller ......SW102
Riktigt bra artikel:
https://ebikechoices.com/tongsheng-tsdz2-review/
-------------------- --------------
http://www.aptdevelop.com/index.php?m=enproduct&a=index
Tillverkare av display TFT-850C
-------------- ------------

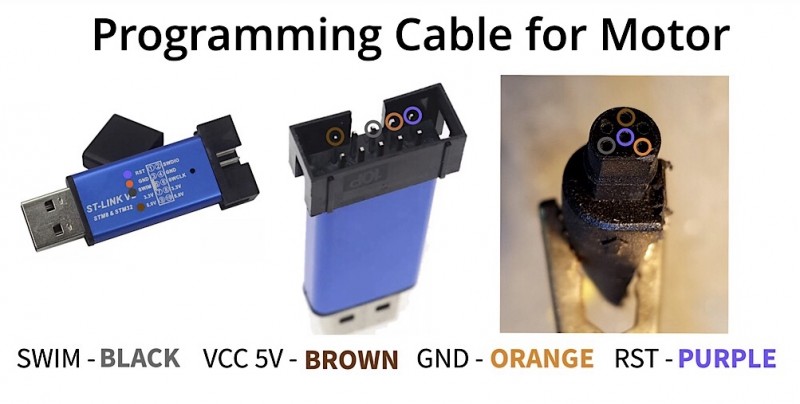

6pin speed cable ST-Link V2 pinar
Purple --- Grön - RST 1
Black --- Black - SWIM 1
Orange --- Orange - GND 2
------- --- White - No use 2
Brown --- White - 5V 3
1 = 2pin twisted green/black
2 = 2pin twisted orange/white (white not used)
3 = 2pin vertical white/black (black not used)
--------------- ------------
------------- ------------

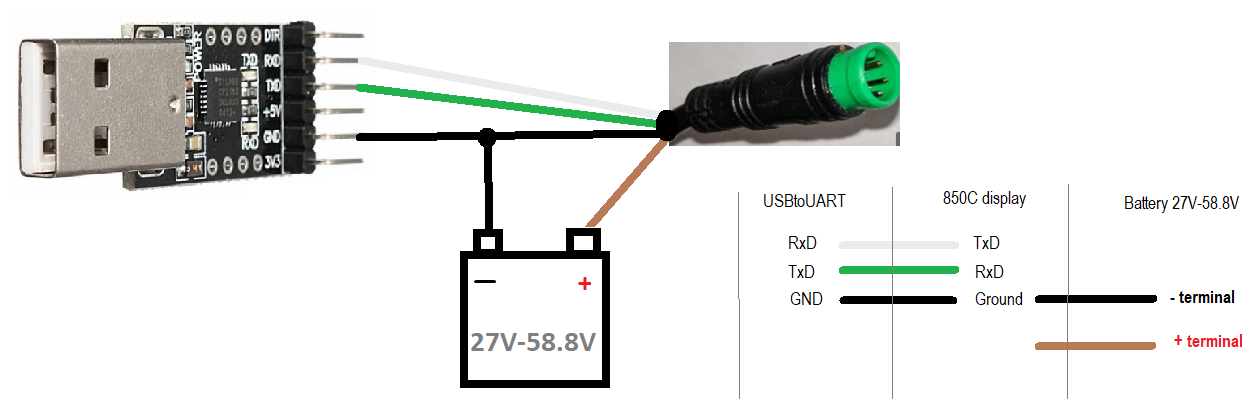

USBtoUART info
Casainho rekommenderar: CP2102 USB to TTL Board V3.0
https://github.com/OpenSource-EBike-firmware/TSDZ2_wiki/wiki/Flash-the-firmware-on-850C-using-bootloader
https://www.endless-sphere.com/forums/viewtopic.php?f=30&t=93818&start=3775
"I have built a number of these 850c bootloaders over the last few years. Very easy DIY project. The trick is that you must use a USB/TTL adapter with a CP2102 chipset in it. This is required by the APT software which uses a CP210 VCP driver."
Bra pin konfiguration för programmering mm
https://github.com/OpenSource-EBike-firmware/TSDZ2_wiki/wiki/Wire-KT-LCD3-to-TSDZ2
----------------- -----------
marcoq versionen
Om använda orginal display VLCD5https://github.com/stancecoke/TSDZ2-Smart-EBike-compatible-with-original-VlCD6-display/wiki
https://github.com/granis/TSDZ2-Smart-EBike-compatible-with-original-VlCD6-display?fbclid=IwAR2l0dF_u8EBE0OJTP3bH-B1Xo6nTbGdgXgVKJB_VBqC5PpE_mPJzdGW_zw
-------------------- -------------
Program motor controller with STLINK Clone, måste reda ut motsvarighet på CP2102 clone.
https://github.com/OpenSource-EBike-firmware/TSDZ2_wiki/wiki/Flash-the-firmware-on-TSDZ2
-------------- -----------
TSDZ2_wiki with temperaturesensor in stock
Använder LM35DZ
https://www.youtube.com/watch?v=Wb8Omk6e7GI
TSDZ2 OPENSOURCE FIRMWARE | INSTALLING TEMPERATURE SENSOR
"Years of posted experiments by real E-bikers on endless-sphere have produced a commonly held rule-of-thumb to avoid heating your E-bike motor to above 95C (200F)."
Throttle till TSDZ2, via Y-kabel?
https://youtu.be/BtS4Krd_Zt8
"When future bike in Italy and another ebike company in Korea started selling a 48v 500w Tongsheng motor last year I contacted a guy I know at Tongsheng Bicycle. He confirmed that it is the exact same motor as the TSDZ2 but with different firmware. He said the firmware upgrade can only be done at the factory and that he could provide me with motors with that firmware - just need to order a boatload of them. He said he doesn't recommend it because it pushes the motor past its 350 watt design. The good news is they are working on a new 500 watt motor that was supposed to be out last year but it is late being released. He will let me know when it comes out."
- Rydon, Jan 22 2017, https://endless-sphere.com/forums/viewtopic.php?f=28&t=79788&hilit=TSDZ2+version&start=225
Högre volt
"I tried an 39.6v 11s battery on my 36v motor to see if I could increase the rpm of the motor. It was absolutely useful in the sense that I could have assist at a higher cadence. The main issue I have with this motor is that with a 36v 10s battery rpm of the motor is too low to assist me when pedaling fast. It starts to lay off at around 75-80 rpm with the 36v battery. 39.6v lets me pedal all the way up to 90-ish rpm. A subtle, but noticable difference.
The higher voltage produced less motor-noise and a more natural assist. It's more than powerful enough for me even though I regularily haul up to 100 kg of extra stuff on my cargo bike."
-------------- ------------
Speedsensor pinout, verkar behövas för att koppla in sig för firmware uppgradering.
https://github.com/hurzhurz/tsdz2/blob/master/pinout.md
------------------ --------------
About getting Bafang 850C color LCD working with TSDZ2
"1. huge memory space of 512kbytes; 2. internal clock that means I will not need anymore to check the hours on my watch while riding; 3. fast communication from the microcontroller to LCD that should permit fast drawing of real time graphs with data like motor current, motor temperature, etc." - Casainho
https://github.com/OpenSource-EBike-firmware/Color_LCD/wiki/Bafang-color-LCD-850C
Microcontoller: GD32F103RET6
This is a 32 bits ARM Cortex M3 that should be very similar to STM32F103.
GD32F103RET6 main characteristics:
Maximum Speed Up to 108MHz
Flash Memory: 512K
RAM: 64K
Package: LQFP64
Dom som tillverkar P850C
http://www.aptdevelop.com/index.php?m=articlee&a=index&id=130
Finns 850c och även P850C, verkar vara P modellen man ska ha.
Om beställer från China, så verkar den billigast hos PSWPOWER
http://www.pswpower.com/ven.php?cargo.2016-5e-2eaj
Elcykel Cube med Bosch Performance CX bra kvalité?
Bosch Performance CX bra kvalité?
Carl A. skriver
"Polarens hoj. Över 1500 mil. Bosch performance cx med 500 batteri. Bytt kedja å drev en gång. Inte ett enda fel. Ingen försämring på varken motor eller batteri. Fantastisk - kvalité lönar sig"
Vi tackar Carl för informationen.
Sunday, 5 January 2020
Rea på elcykel från Biltema
Rea på Biltema
Bra pris 6999 kr, vissa säger sig vara nöjda med sina Biltema elcyklar. Det sitter en Bafang motor i bakhjulet, med planetväxel. Den här har 29 tums hjul om man gillar det.
Finns kvar i Jönköping, Malmö och Göteborg när detta skrivs.
 |
| Mountainbike elcykel från Biltema har rea. |
