Cargo Trailers, some interesting alternatives
Have been looking for a long time for a strong cargo trailer with fat tires
Sunstorm bicycle trailer, bicycle trailer, cargo trailer, cargo trailer or whatever you want to call it.
Weight: 25 kg with carton
Maximum load: 100 kg (10-15 km/h), 80 kg (15-20 km/h), 60 kg (20-25 km/h), 40 kg (25-35 km/h)
Quick connection
Weatherproof bag (holds 140 litres), removable
Cargo space 50*35*80cm (the ends can be folded and then transport packages with a length of approx. 180 cm)
Foldable and quick couplings for tires.
Carton: 86*35*63 cm (weighs 24.3 kg)
This has a horizontal mount to fit both our electric scooters and electric bikes. This can handle 100 kg, which is more than most bicycle carts sold in Sweden!
More info here: https://sunstorm.se/butik/cargo/
================== ==============
Klarfit Companion
Cargo trailer: 50-litre cargo space with 42 x 63 cm space for two beverage crates.
2-in-1: use as a bike trailer or as a hand cart
================== ===============
Carry freedom, also interesting!!
Y-frame
Carry Freedom has its Y-frame which can become very flat.
Trailer-Platform, 900 x 600 mm, 20″ wheels, carrying load 90 kg, weight 10,5 kg, with Lollipop Elastomer hitch and 1 hitch bracket. With this you can fit a fridge or something similar.
https://carryfreedom.com/product/using-trailers/urban-use/carry-freedom-y-x-large-2-2-with-lollypop-hitch/
----------------- -----------
Thule does not have a strict cargo trailer but they have child-trailers:
Thule Coaster XT, cheapest Thule carrier.
================ ===========
A nice Surly steelbike and a long hauler cargo trailer!
"Attached a ladder to the cart and then the drawbar to the ladder. It turned out really cool and I could have taken another box if you put them on the other link. I put anti-slip tape on the ladder so the load sits more stable. The steps of the ladder are hollow and were perfect for to pull the cargo straps through so they stayed in place better. However, I had a bit of a problem with the cart being jerky." - E. Brinkman
Photos by E. Brinkman
"The ladder were also from Biltema. When I removed the sides of the cart, its brackets stuck up, between them the ladder just had room with small wooden spacers so that the ladder would sit firmly. Then I used hose clamps to secure it.
I then attached the pull arm with screws to the sides of the ladder. But to stabilize it, I took a steel tube that just fit inside the drawbar, which now makes it sit more firmly. You can see it in the picture. But it is quite possible that it is unnecessary." - E. Brinkman
 |
| I believe the ladder is 3m |
"I have now made a couple of beams which means that a wide load comes above the wheels and at the same time is supported laterally." - E. Brinkman

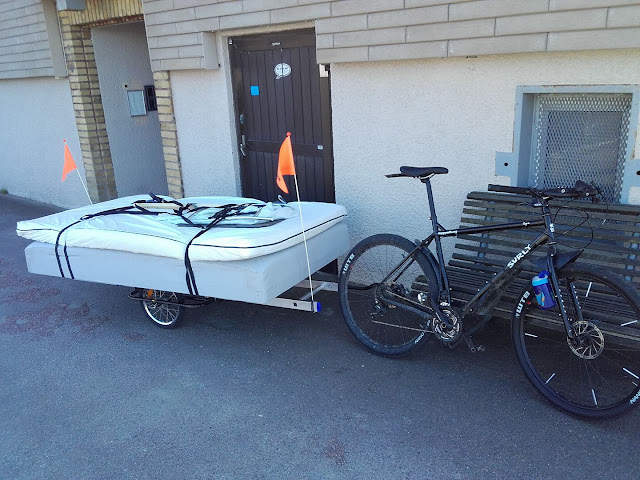

"120cm wide bed was surprisingly easy to drive!" - E. Brinkman
This is Biltema cargo trailer from start:
 |
| Biltema Cykelvagn |
---------- Bike carrier -------
Check out this build, nice!
---------------- ------------
https://www.youtube.com/watch?v=BiT9gvm3X5E
Single wheel scooter trailer
--------- Jula Transportvagn -------
https://www.jula.se/catalog/bygg-och-farg/forvaring/karror-och-palldragare/transportkarror/transportvagn-023677/?gclid=CjwKCAjw69moBhBgEiwAUFCx2NWI4u-xcRFlvUrwg0c2klhyJ8vkVtK1IIpX49BMcQ8cZ6ZZdrm-QBoCIPMQAvD_BwE&gclsrc=aw.ds
